Styled Wheels

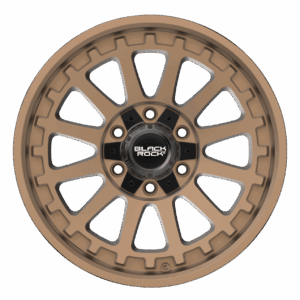

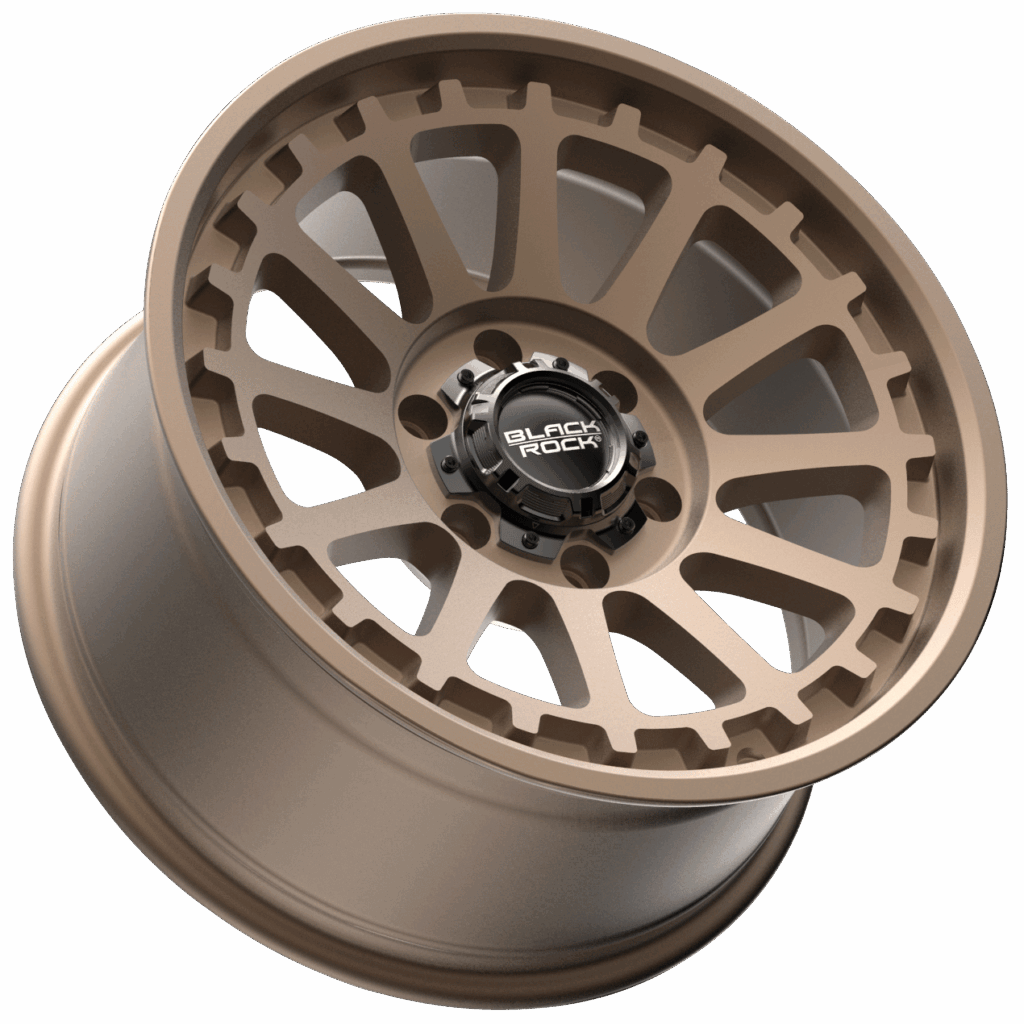

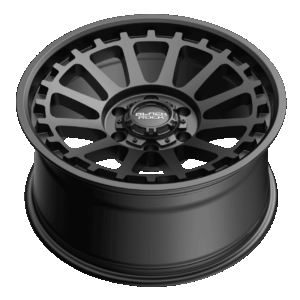

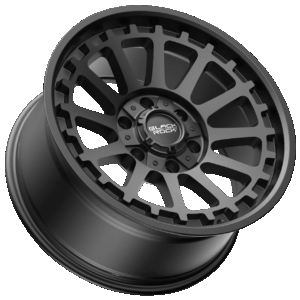

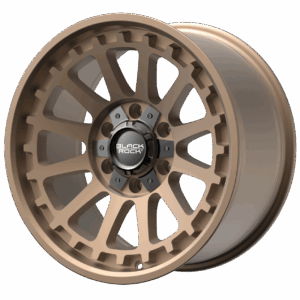

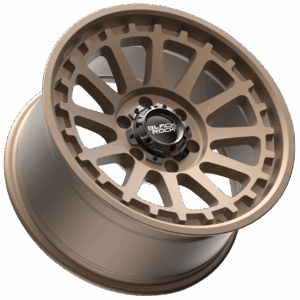

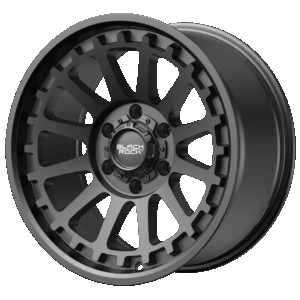

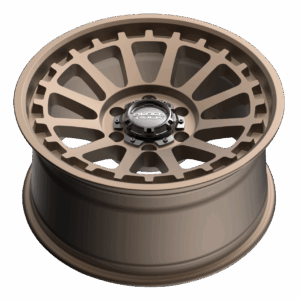

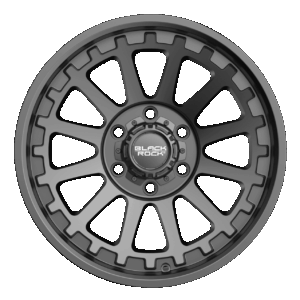

A modern take on the classic gear design, the Series 940 is a lightweight, one-piece cast aluminum wheel available in satin black and bronze. Hub-centric and SAE J2530 tested, its dual bolt pattern and multiple offsets provide versatile fitments for trucks and SUVs.
CONSTRUCTION: Light Weight High Quality 1- Piece Cast Aluminum
FIT: Hub Centric
FINISH: Satin Black & Bronze
OFFSET: 0mm, 12mm, 18mm
DUAL BOLT PATTERN: 5x127mm – 5×139.7mm, 6×135 – 6×139.7
LUG: Conical Buldge Seat – Sold Separately
CAP: Included
Tested to SAE J2530

Part Number Sort OrderSKUSizeOffset ()Rear Spacing ()Bolt PatternRated Load (Pound)Bolt Pattern 2Rated Load 2Center Bore (Inch)Lug Nut TypeFinishWeight (Pound)
3940SB795017x9055x12720005x139.7210078.3mmBulge Seat ConicalSatin Black25.1
4940SB793517x9125.476x13525006x139.7250095.2mmBulge Seat ConicalSatin Black25.1
5940SB796017x9056x139.72500106.2mmBulge Seat ConicalSatin Black25.1
6940BZ605017x9056x139.72500106.2mmBulge Seat ConicalBronze25.1
7940SB895018x9125.475x12720005x139.7210078.3mmBulge Seat ConicalSatin Black26.5
8940SB893518x9125.476x13525006x139.7250095.2mmBulge Seat ConicalSatin Black26.5
9940SB896018x9056x139.72500106.2mmBulge Seat ConicalSatin Black26.5
10940BZ896018x9056x139.72500106.2mmBulge Seat ConicalBronze26.5
1940SB295020x9185.715x12720005x139.7210078.3mmBulge Seat ConicalSatin Black33.1
2940SB293520x9185.716x13525006x139.7250095.2mmBulge Seat ConicalSatin Black33.1
